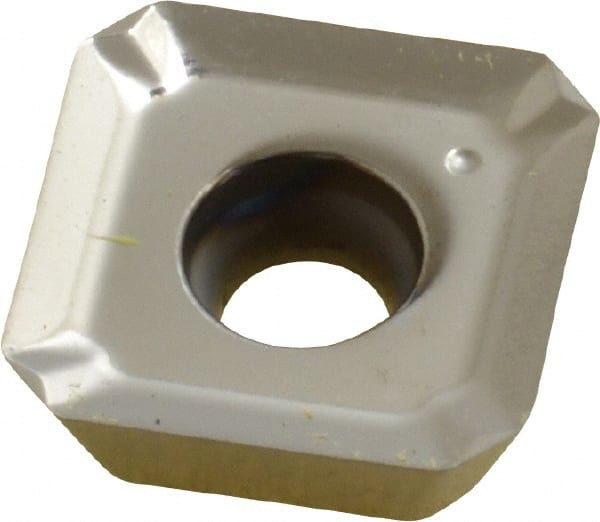

Kennametal - SECT443 LE Grade KC410M Carbide Milling Insert - TiB2 Finish, 0.1874" Thick, 14mm Inscribed Circle, 1mm Corner Radius
Item #: 01654508
Brand: Kennametal
Model #: 2246494
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SECT |
| Insert Size | 443 |
| Material | Carbide |
| Manufacturer's Grade | KC410M |
| Coating | TiB2 |
| Inscribed Circle (mm) | 14.00 |
| Inscribed Circle (Decimal Inch) | 0.5512 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 20.000 |
| Rake Angle | 20 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | LE |
| ISO Number | SECT1404AEFNLE |
