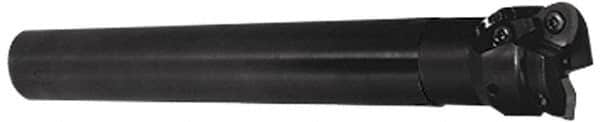

Tungaloy - 1-1/2" Cut Diam, 0.06" Max Depth, 1-1/4" Shank Diam, Weldon Shank Indexable High-Feed End Mill - Screw & Clamp Holding Method, WPM. 06X4.. Insert, EXP Toolholder
Item #: 01682186
Brand: Tungaloy
Model #: 6843469
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Cutter Inserts | 3 |
| Insert Style | WPM. 06X4.. |
| Toolholder Style | EXP |
| Insert Holding Method | Screw & Clamp |
| Weldon Flat | Yes |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Through Coolant | NonThrough Coolant |
| Head Length (Decimal Inch) | 3.5000 |
| Overall Length (Decimal Inch) | 5.7810 |
| Projection (Decimal Inch) | 5.7810 |
