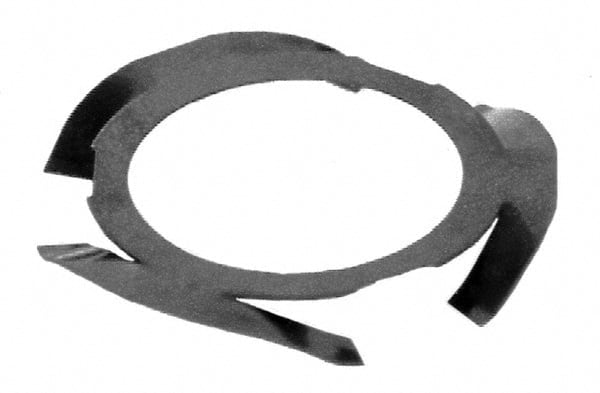

Gardner Spring - 1.359" ID, Grade 1074 Steel, Uncoated Finger Disc Spring - 2.022" OD, 0.019" Thick
Item #: 01693001
Brand: Gardner Spring
Model #: MF2022-019
Exact Tooling IR#: 04
Features and Benefits
Finger disc springs reduce vibration, noise and skidding in high-speed applications.
| Product Specifications | |
|---|---|
| Type | Finger Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 1.3590 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 2.0220 |
| Thickness (Decimal Inch) | 0.0190 |
| Deflection (Decimal Inch) | 0.0620 |
| Minimum Inside Diameter (Decimal Inch) | 1.3590 |
| Maximum Outside Diameter (Decimal Inch) | 2.0220 |
| Load at Deflection (Lb.) | 13 to 27 |
| Minimum Load at Deflection (Lb.) | 17.00 |
| Maximum Load at Deflection (Lb.) | 23.00 |
| Bearing Outside Diameter (Decimal Inch) | 2.0472 |
| Number of Fingers | 3 |
| Finish/Coating | Uncoated |
