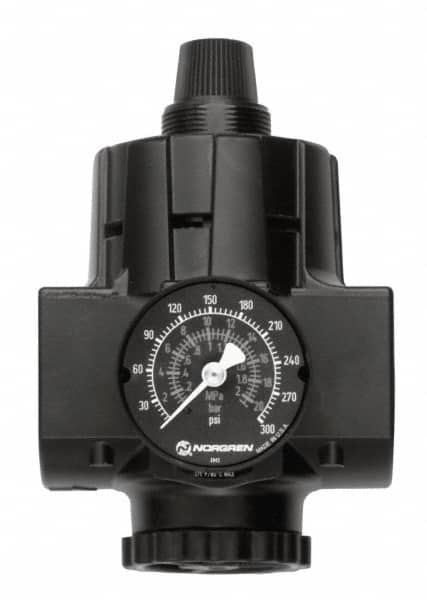

Norgren - 1-1/4 NPT Port, 700 CFM, Zinc Hi-Flow Regulator - 10 to 125 psi Range, 300 Max psi Supply Pressure, 1/2" Gauge Port Thread, 2.91" Wide x 5.37" High
Item #: 01724707
Brand: Norgren
Model #: R24-A00-RGLA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Hi-Flow |
| Port Size NPT | 1-1/4 |
| Range | 10 - 125 |
| Maximum Supply Pressure (psi) | 300 |
| Pressure Gauge Included | Yes |
| Air Flow (CFM) | 700.0 |
| Maximum Temperature (F) | 150 |
| Width (Decimal Inch) | 2.9100 |
| Height (Inch) | 5.37 |
| Material | Zinc |
| Gauge Port Thread Size | 1/2 |
| Minimum Temperature (F) | 0 |
| Modular Connection | No |
| Fluid Type | Compressed Air |
| Relief Function | Relieving |
