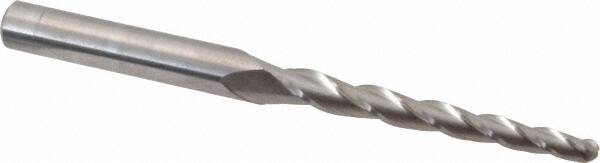

Accupro - 1.5° Taper Angle per Side, 1/8" Small End Diam, 1-1/2" LOC, Solid Carbide 3 Flute Tapered Ball End Mill - 3" OAL, 1/4" Shank Diam
Item #: 01734375
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| End Type | Ball |
| Taper Angle Per Side | 1.50 |
| Small End Diameter (Inch) | 1/8 |
| Small End Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/4 |
| Length of Cut (Inch) | 1-1/2 |
| Length of Cut (Decimal Inch) | 1.5000 |
| Number of Flutes | 3 |
| Overall Length (Inch) | 3 |
| Nose Radius (Inch) | 1/16 |
| Centercutting | Yes |
