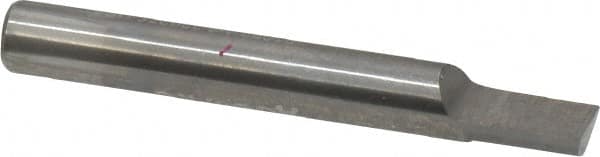

Accupro - 1/4" Shank Diam, 2" OAL, 1/4" Cut Diam, Square Engraving Cutter - 3/8" LOC, 1/4" Tip Diam, 1 Flute, Right Hand Cut, Micrograin Solid Carbide, Uncoated
Item #: 01789163
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on non-ferrous metals.
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
| Product Specifications | |
|---|---|
| Point Shape | Square |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2 |
| Cutting Diameter (Inch) | 1/4 |
| Length of Cut (Decimal Inch) | 0.3750 |
| Length of Cut (Inch) | 3/8 |
| Finish/Coating | Uncoated |
| Number of Flutes | 1 |
| Cutting Direction | Right Hand |
| Tip Diameter (Decimal Inch) | 0.2500 |
| Material Grade | Micrograin |
| Material | Solid Carbide |
