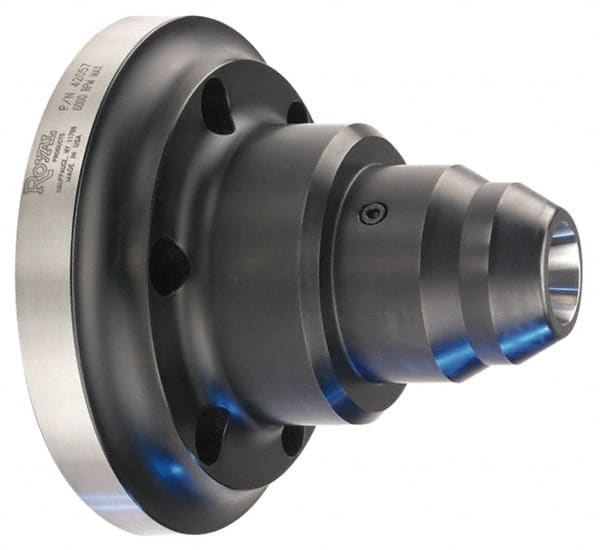

Royal Products - 1-3/4 Inch Max Collet Capacity, 3J Collet Chuck - 6 Inch Overall Length, 0.0002 Inch TIR, 4.84 Inch Projection
Item #: 01898063
Brand: Royal Products
Model #: 42061
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | 3J |
| Spindle Size | A2-5 |
| Actuator Type | Drawbar |
| Maximum Collet Capacity (Inch) | 1-3/4 |
| Projection (Decimal) | 4.8400 |
| Overall Length (Decimal) | 6.0000 |
| Through Coolant | Nonthrough Coolant |
| Maximum RPM | 6000.000 |
| Nose Diameter (Decimal) | 3.0800 |
| TIR (Decimal Inch) | 0.0002 |
| PSC Code | 5136 |
