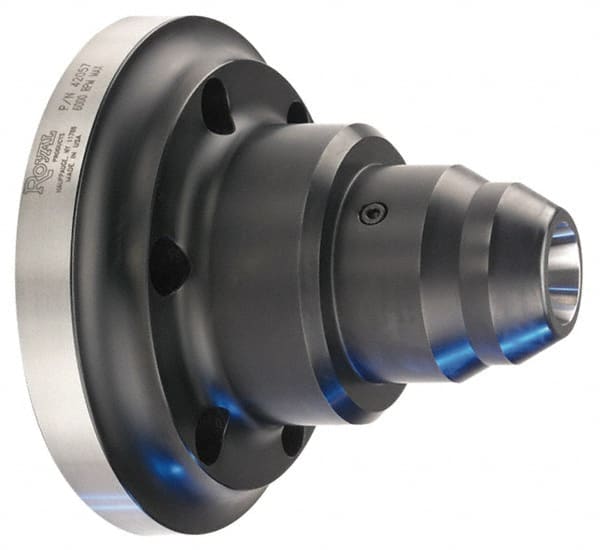

Royal Products - 1-5/8 Inch Max Collet Capacity, 16C Collet Chuck - 6 Inch Overall Length, 0.0002 Inch TIR, 4.46 Inch Projection
Item #: 01898105
Brand: Royal Products
Model #: 42069
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | 16C |
| Spindle Size | A2-6 |
| Actuator Type | Drawbar |
| Maximum Collet Capacity (Inch) | 1-5/8 |
| Projection (Decimal) | 4.4600 |
| Overall Length (Decimal) | 6.0000 |
| Through Coolant | Nonthrough Coolant |
| Maximum RPM | 6000.000 |
| Nose Diameter (Decimal) | 3.2500 |
| TIR (Decimal Inch) | 0.0002 |
| PSC Code | 5136 |
