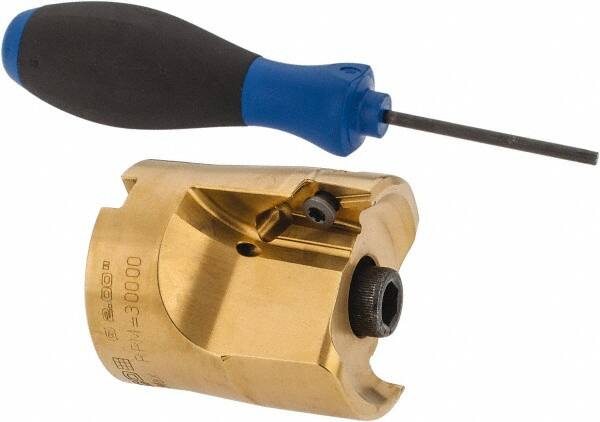

Seco - 2" Cut Diam, 0.394" Max Depth, 3/4" Arbor Hole, 2 Inserts, VPGX 2206..E.-E10 Insert Style, Indexable Copy Face Mill - R220.97 Cutter Style, 30,000 Max RPM, 2-1/4 High, Through Coolant, Series R220.97
Item #: 01926344
Brand: Seco
Model #: 54269
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 2.2500 |
| Series | R220.97 |
| Number of Cutter Inserts | 2 |
| Insert Compatibility | VPGX 2206..E.-E10 |
| Cutter Style | R220.97 |
| Through Coolant | Yes |
| Maximum RPM | 30000 |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (mm) | 22.00 |
| Keyway Width (Decimal Inch) | 0.3200 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | VPGX 220631EN-E10; VPGX 220631FN-E06 |
