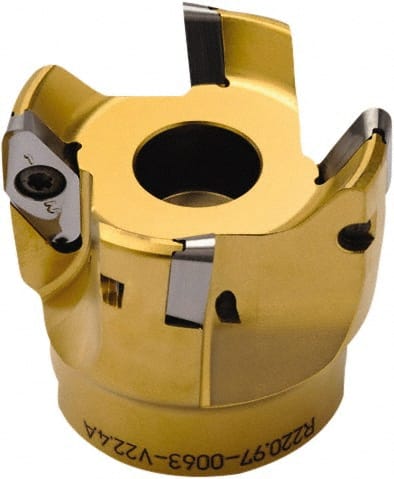

Seco - 2-1/2" Cut Diam, 0.394" Max Depth, 1" Arbor Hole, 4 Inserts, VPGX 2206 Insert Style, Indexable Copy Face Mill - 27,000 Max RPM, 2-1/4 High, Through Coolant
Item #: 01926351
Brand: Seco
Model #: 55249
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 2.2500 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | VPGX 2206 |
| Through Coolant | Yes |
| Maximum RPM | 27000 |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 0.3800 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | VPGX 220605ER-E10; VPGX 220608PDER-E10; VPGX 220616ER-E10; VPGX 220620ER-E10; VPGX 220624ER-E10; VPGX 220631EN-E10; VPGX 220640ER-E10; VPGX 220648ER-E10; VPGX 220663ER-E10 |
