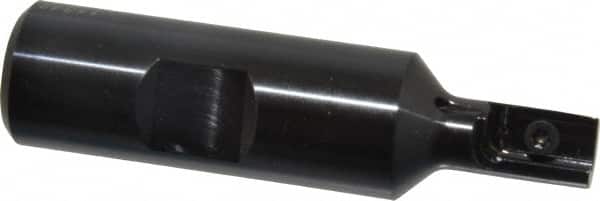

Carmex - 1/2" Cut Diam, 0.7" Max Depth of Cut, 3/4" Shank Diam, Indexable Thread Mill - Insert Style I/E, 14mm Insert Size, 1 Insert, Toolholder Style SR, 2.95" OAL
Item #: 02026532
Brand: Carmex
Model #: SR0500F14
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Maximum Hole Depth (Decimal Inch) | 0.7000 |
| Insert Style | I/E |
| Insert Size (mm) | 14.00 |
| Toolholder Style | SR |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 2.9500 |
| Number of Threading Inserts | 1 |
| Through Coolant | Through Coolant |
| Toolholder Material | Steel |
| Insert Holding Method | Screw |
| Neck Diameter (Decimal Inch) | 0.3700 |
