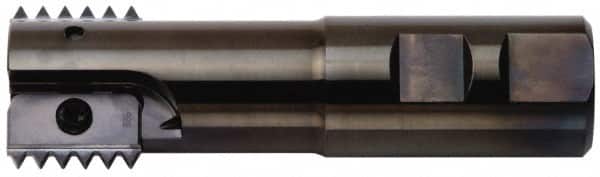

Carmex - 1.57" Cut Diam, 2.8" Max Depth of Cut, 1-1/4" Shank Diam, Indexable Thread Mill - Insert Style I/E, 30mm Insert Size, 2 Inserts, Toolholder Style SR, 5.12" OAL
Item #: 02026680
Brand: Carmex
Model #: SR1580L30-2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5700 |
| Maximum Hole Depth (Decimal Inch) | 2.8000 |
| Insert Style | I/E |
| Insert Size (mm) | 30.00 |
| Toolholder Style | SR |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 5.1200 |
| Number of Threading Inserts | 2 |
| Through Coolant | Through Coolant |
| Toolholder Material | Steel |
| Insert Holding Method | Screw |
| Neck Diameter (Decimal Inch) | 1.1800 |
