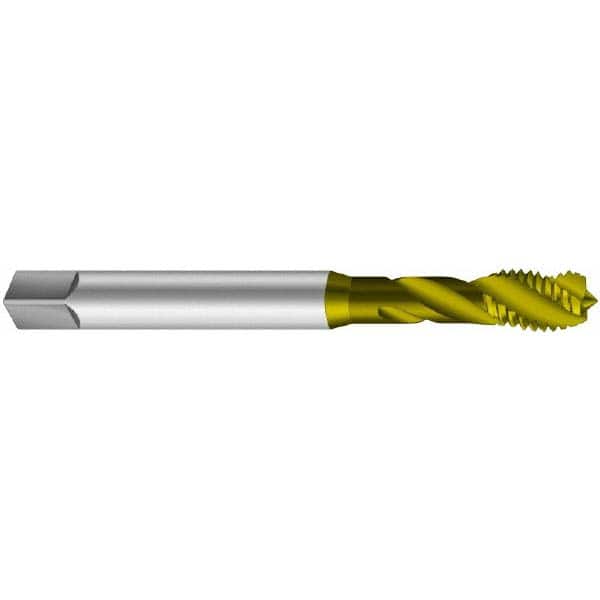

Spiral Flute Tap: 1-1/8-8, UNS, 5 Flute, Modified Bottoming, 2B Class of Fit, Cobalt, TiN Finish 1.181″ Thread Length, 7.087″ OAL, Right Hand Flute, Right Hand Thread, Series Enorm Z
Item #: 02027720
Brand: Emuge
Model #: CU503700.5247
Product Specifications
| Material | Cobalt |
| Coating/Finish | TIN |
| Thread Size (Inch - 0 Decimals) | 1-1/8-8 |
| Thread Standard | UNS |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.1810 |
| Overall Length (Decimal Inch) | 7.0870 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.8960 |
| Square Size (Decimal Inch) | 0.6720 |
| Flute Style | Fast |
| Material Application | Tool Steel; Aluminum Alloys; High Alloy Steel Castings; Acid Resistant Steel; Titanium Alloys; Stainless Steel; Structural Steel; Heat-Treated Materials; Nickel; Steel Castings; Nickel Alloys; Free Cutting Steel; Heat Treated Steel |
| Series | Enorm Z |
| Coolant Through | No |
| Teeth per Inch | 8 |
| Number Of Flutes | 5 |
| Class Of Fit | 2B |
