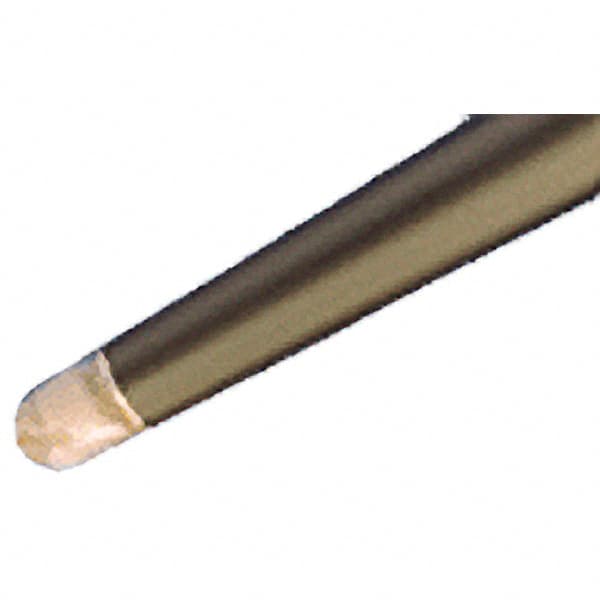

Iscar - Multimaster 1" 85° Shank Milling Tip Insert Holder & Shank - 0.72" Neck Diam, T12 Neck Thread, 6.3" OAL, Steel MM S-B Tool Holder
Item #: 02059822
Brand: Iscar
Model #: 3103859
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 85 Degree Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Neck Diameter (Decimal Inch) | 0.7200 |
| Neck Thread Size | T12 |
| Toolholder Material | Steel |
| Overall Length (Decimal Inch) | 6.3000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Effective Length (Decimal Inch) | 1.6000 |
| Milling Tip Style | BCM-MM, E93CN-MM, FF EWX-MM-04, HCE-MM, HCM-MM, HM90 E90A-MM-10, HP E90AN-MM-07, T490 ELN-MM-08 |
| Shank Shape | Conical |
| Toolholder Style | MM S-B |
