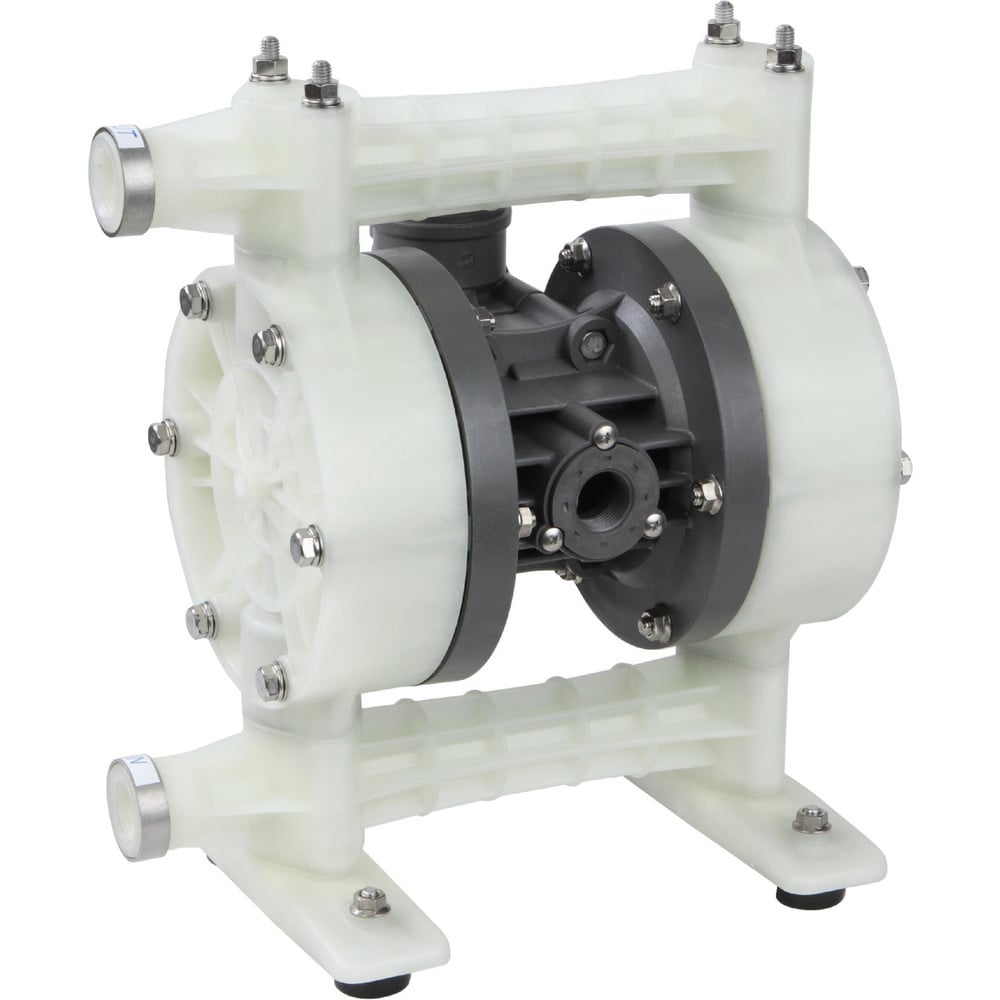

Air Operated Double Diaphragm Pump - 3/4"
Item #: 96668850
Brand: PRO-LUBE
Model #: AODD/3-4/BPS/N
Product Specifications
| Maximum Flow Rate | 29.1 |
| Maximum Flow Rate (Gpm - 2 Decimals) | 29.10 |
| Pump Type | Air Operated Pump; Diaphragm Pump |
| Maximum Working Pressure (Psi - 3 Decimals) | 100.000 |
| Maximum Working Pressure | 100.000 |
| Maximum Particle Size | .0625 |
| Housing Material | Polypropylene |
| Thread Type | NPT |
| Inlet Size | .75 |
| Inlet/Outlet NPT | 3/4 |
| Cubic Feet Per Minute | 42.4 |
| Diaphragm Material | Santoprene |
| Ball Material | Santoprene |
| Check Seat Material | Buna-N |
| Port Size | 3/4 |
| Port Type | Female |
| Body Material | Polypropylene |
| Length (Decimal Inch - 4 Decimals) | 12.6000 |
| Height (Decimal Inch) | 14.570000 |
| Maximum Temperature (F) ( - 0 Decimals) | 140.000 |
| Maximum Solid Size (Inch) | 1/16 |
| Air Inlet Size (Inch) | 1/4 |
| Width (Decimal Inch - 4 Decimals) | 9.8400 |
| Contents | 1pc Double Diaphragm Pump with Instruction Manual |
| Maximum Cubic Feet Per Minute (CFM) | 42.40 |
| UNSPSC Code | 40151548 |
