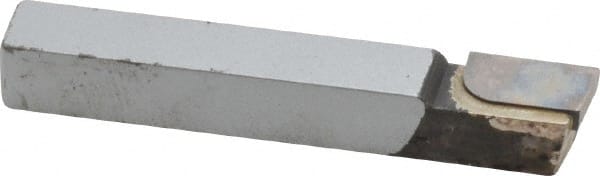

Made in USA - 5/16 x 5/16" Shank, Square Shoulder Turning Single Point Tool Bit - AR-5, Grade K68
Item #: 02097764
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials. It is commonly used in high performance applications
| Product Specifications | |
|---|---|
| Tip Material | Carbide |
| Tip Material Grade | K68 |
| Tool Bit Style | AR |
| Tool Bit Type | Square Shoulder Turning |
| Cutting Direction | Right Hand |
| Shank Width/Diameter (Inch) | 5/16 |
| Shank Height (Inch) | 5/16 |
| Industry Standard Number | AR-5 |
| Overall Length (Inch) | 2-1/4 |
| Nose Radius (Inch) | 1/64 |
| Cutting Application | Boring; Chamfering; Turning |
| Manufacturer Grade | K68 |
