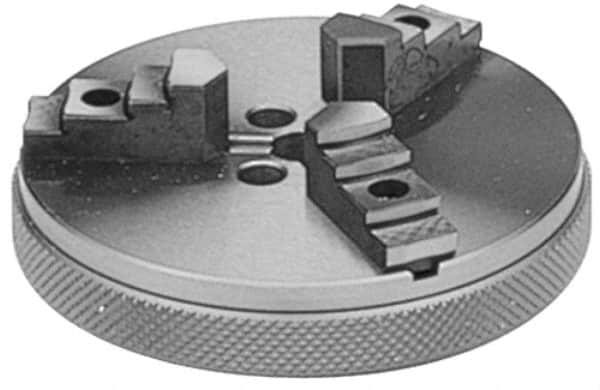

Value Collection - 3 Jaws, 2.75" Diam, Self Centering Manual Lathe Chuck - Plain Back Mount Spindle, Reversible, 5/16" Through Hole Diam, Forged Steel
Item #: 02104412
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Forged steel or steel chucks have greater accuracy, less wear and can be operated at higher RPM's.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 2-3/4 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (Inch) | 5/16 |
| Body Material | Forged Steel |
| Reversible Jaws | Reversible Jaws |
| Chuck Diameter (Inch) | 2-3/4 |
| Minimum Jaw Capacity (Inch) | 41/64 |
| Maximum Jaw Capacity (Inch) | 2-3/8 |
| Adjustable | No |
