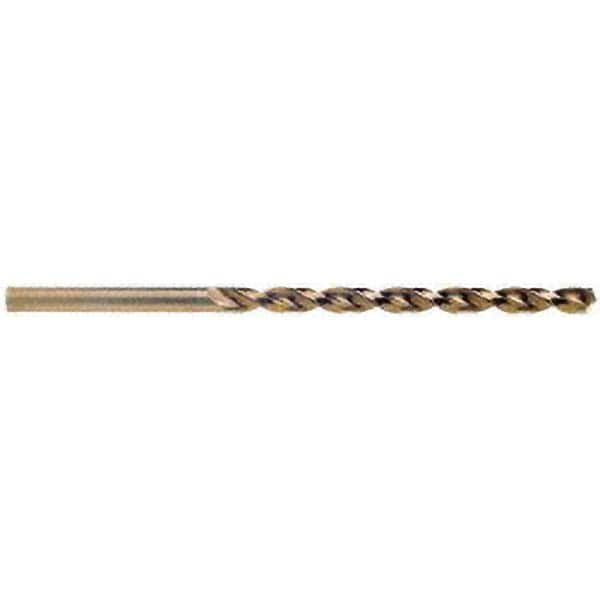

Cleveland - 7.5mm 135° Cobalt Jobber Drill
Item #: 02147254
Brand: Cleveland
Model #: C16599
Product Specifications
| Drill Bit Size (mm) | 7.50 |
| Drill Bit Size (Decimal Inch) | 0.2953 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 69.00 |
| Flute Length (Decimal Inch) | 2.7165 |
| Overall Length (Decimal Inch) | 4.2910 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.2953 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0010 to 0.0000 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Drill Bit Grade | Heavy-Duty |
| Material Grade | M42 |
| Series/List | 2075 |
