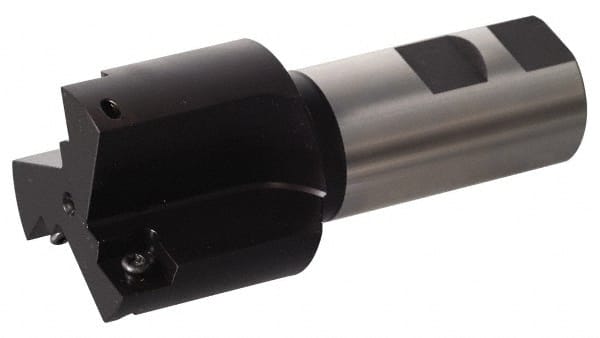

Kennametal - 1.5827 Inch Diameter, Whistle Notch, 32 mm Shank Diameter, 3 Insert, Indexable Counterbore - 4.7638 Inch Overall Length, SPHX 120404R. Insert
Item #: 02160604
Brand: Kennametal
Model #: 1246195
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Counterbore Diameter (mm) | 40.20 |
| Counterbore Diameter (Decimal Inch) | 1.5827 |
| Maximum Counterbore Depth (mm) | 30.50 |
| Maximum Counterbore Depth (Decimal Inch) | 1.2008 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Number of Counterbore Inserts | 3 |
| Insert Style | SPHX 120404R.. |
| Minimum Cutting Diameter (mm) | 21.00 |
| Overall Length (mm) | 121.00 |
| Overall Length (Decimal Inch) | 4.7638 |
| Number of Flutes | 3 |
| Toolholder Material | Steel |
| Shank Type | Whistle Notch |
| Series | S2S |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Head Length (mm) | 61.00 |
| Head Length (Decimal Inch) | 2.4016 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
