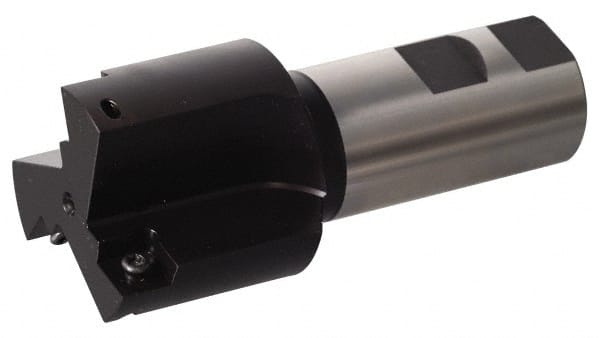

Kennametal - 61/64 Inch Diameter, Whistle Notch, 20 mm Shank Diameter, 2 Insert, Indexable Counterbore - 3.5827 Inch Overall Length, SPHX 090304R. Insert
Item #: 02160612
Brand: Kennametal
Model #: 1246203
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Counterbore Diameter (mm) | 24.21 |
| Counterbore Diameter (Decimal Inch) | 0.9531 |
| Maximum Counterbore Depth (mm) | 18.50 |
| Maximum Counterbore Depth (Decimal Inch) | 0.7283 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Number of Counterbore Inserts | 2 |
| Insert Style | SPHX 090304R.. |
| Minimum Cutting Diameter (mm) | 10.50 |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5827 |
| Number of Flutes | 2 |
| Toolholder Material | Steel |
| Shank Type | Whistle Notch |
| Series | S2S |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Head Length (mm) | 41.00 |
| Head Length (Decimal Inch) | 1.6142 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
