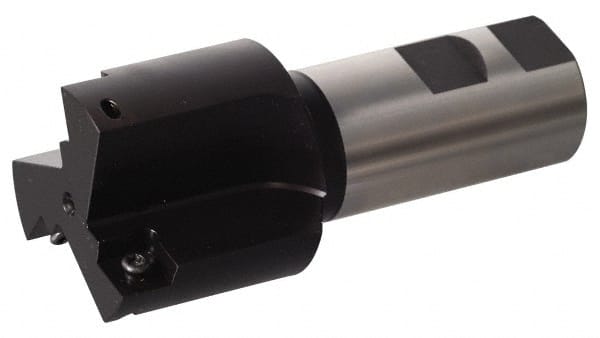

Kennametal - 1.2677 Inch Diameter, Whistle Notch, 20 mm Shank Diameter, 3 Insert, Indexable Counterbore - 3.9764 Inch Overall Length, SPHX 090304R. Insert
Item #: 02160638
Brand: Kennametal
Model #: 1246207
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Counterbore Diameter (mm) | 32.20 |
| Counterbore Diameter (Decimal Inch) | 1.2677 |
| Maximum Counterbore Depth (mm) | 23.00 |
| Maximum Counterbore Depth (Decimal Inch) | 0.9055 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Number of Counterbore Inserts | 3 |
| Insert Style | SPHX 090304R.. |
| Minimum Cutting Diameter (mm) | 17.00 |
| Overall Length (mm) | 101.00 |
| Overall Length (Decimal Inch) | 3.9764 |
| Number of Flutes | 3 |
| Toolholder Material | Steel |
| Shank Type | Whistle Notch |
| Series | S2S |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Head Length (mm) | 51.00 |
| Head Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
