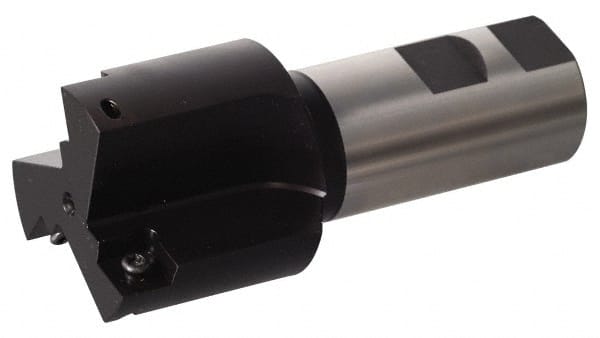

Kennametal - 1-3/16 Inch Diameter, Weldon Flat, 25.4 mm Shank Diameter, 3 Insert, Indexable Counterbore - 4.0004 Inch Overall Length, SPHX 090304R. Insert
Item #: 02160653
Brand: Kennametal
Model #: 1992583
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Counterbore Diameter (Decimal Inch) | 1.1880 |
| Maximum Counterbore Depth (Decimal Inch) | 0.7812 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Counterbore Inserts | 3 |
| Insert Style | SPHX 090304R.. |
| Minimum Cutting Diameter (Decimal Inch) | 0.7812 |
| Overall Length (mm) | 101.61 |
| Overall Length (Decimal Inch) | 4.0004 |
| Number of Flutes | 3 |
| Toolholder Material | Steel |
| Shank Type | Weldon Flat |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Shank Length (mm) | 58.40 |
| Shank Length (Decimal Inch) | 2.2990 |
