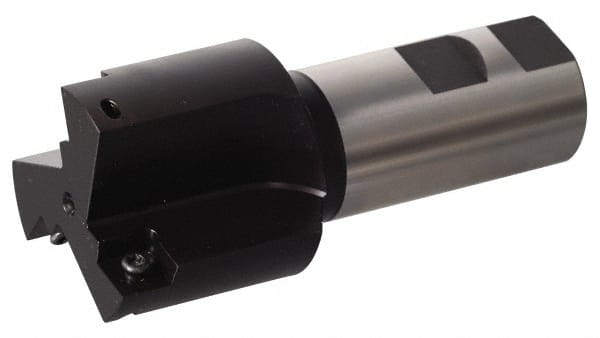

Kennametal - 0.6354 Inch Diameter, Whistle Notch, 20 mm Shank Diameter, 2 Insert, Indexable Counterbore - 3.189 Inch Overall Length, SPHX 060204R. Insert
Item #: 02160752
Brand: Kennametal
Model #: 2204394
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Counterbore Diameter (mm) | 16.14 |
| Counterbore Diameter (Decimal Inch) | 0.6354 |
| Maximum Counterbore Depth (mm) | 8.50 |
| Maximum Counterbore Depth (Decimal Inch) | 0.3346 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Number of Counterbore Inserts | 2 |
| Insert Style | SPHX 060204R.. |
| Minimum Cutting Diameter (mm) | 7.00 |
| Overall Length (mm) | 81.00 |
| Overall Length (Decimal Inch) | 3.1890 |
| Number of Flutes | 2 |
| Toolholder Material | Steel |
| Shank Type | Whistle Notch |
| Series | S2S |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Head Length (mm) | 31.00 |
| Head Length (Decimal Inch) | 1.2205 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
