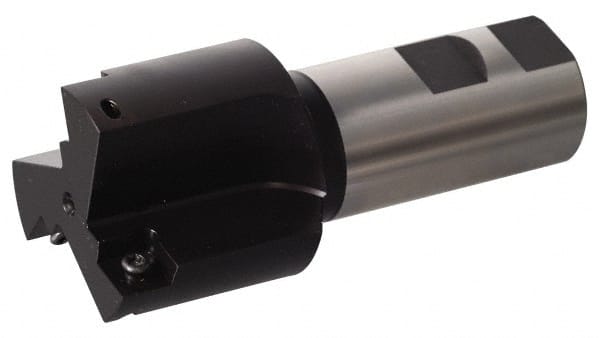

Kennametal - 1.3465 Inch Diameter, Whistle Notch, 32 mm Shank Diameter, 3 Insert, Indexable Counterbore - 4.3701 Inch Overall Length, SPHX 090304R. Insert
Item #: 02160836
Brand: Kennametal
Model #: 2204402
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Counterbore Diameter (mm) | 34.20 |
| Counterbore Diameter (Decimal Inch) | 1.3465 |
| Maximum Counterbore Depth (mm) | 25.50 |
| Maximum Counterbore Depth (Decimal Inch) | 1.0039 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Number of Counterbore Inserts | 3 |
| Insert Style | SPHX 090304R.. |
| Minimum Cutting Diameter (mm) | 18.00 |
| Overall Length (mm) | 111.00 |
| Overall Length (Decimal Inch) | 4.3701 |
| Number of Flutes | 3 |
| Toolholder Material | Steel |
| Shank Type | Whistle Notch |
| Series | S2S |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Head Length (mm) | 51.00 |
| Head Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
