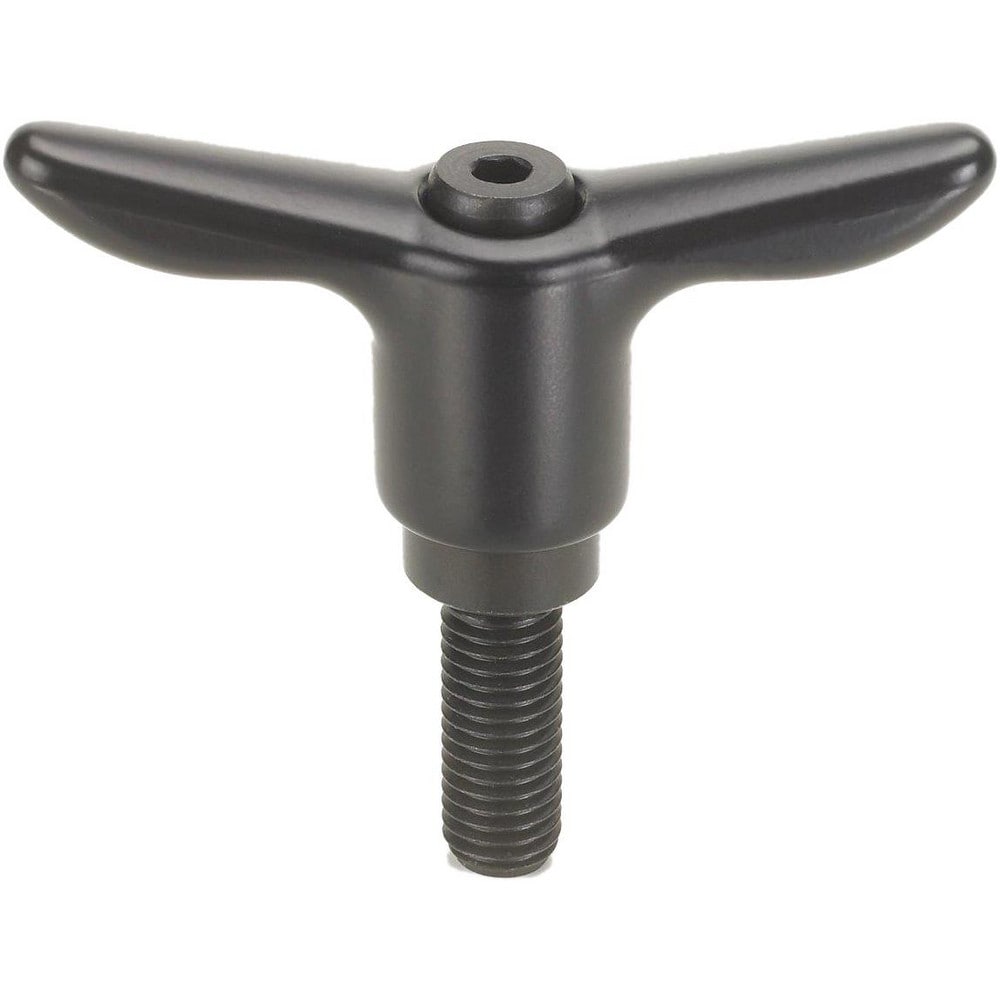

Adjustable Clamping Handle: T-Handle, 1/4-20 Thread, Fiberglass-Reinforced Nylon Handle, 0.5300" Hub Dia, Black
Item #: 60242559
Brand: Morton Machine Works
Model #: THP-3035
Product Specifications
| Connection Type | Threaded Stud |
| Handle Type | T-Handle |
| Mount Type | Threaded Stud |
| Handle Length (Decimal Inch - 4 Decimals) | 2.5600 |
| Overall Length (Decimal Inch) | 2.56 |
| Handle Material | Fiberglass-Reinforced Nylon |
| Overall Height (Decimal Inch) | 1.3100 |
| Thread Size | 1/4-20 |
| Hub Diameter (Decimal Inch) | 0.5300 |
| Stud Length (Decimal Inch) | 0.9800 |
| Stud Material | Steel |
| Color | Black |
| Standards | REACH; RoHS Compliant |
| Body Diameter (Decimal Inch) | 0.7000 |
| Base Diameter (Decimal Inch) | 0.5300 |
| Body Height (Decimal Inch) | 1.1000 |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Plain |
| Components Material | Steel |
| Handle Radius Length (Decimal Inch) | 1.2800 |
| Handle Arm Style | Modern Design |
| UNSPSC Code | 31162801 |
| Actual Handle Height | 1.3100 |
| Threaded Length | 0.9800 |
| Actual Handle Length | 2.5600 |
| Base Radius (Decimal Inch) | 0.2650 |
| Base Width (Inch) | 0.5300 |
| Connection Type | Threaded Stud |
| Handle Type | T-Handle |
| Mount Type | Threaded Stud |
| Handle Length (Decimal Inch - 4 Decimals) | 2.5600 |
| Overall Length (Decimal Inch) | 2.56 |
| Handle Material | Fiberglass-Reinforced Nylon |
| Overall Height (Decimal Inch) | 1.3100 |
| Thread Size | 1/4-20 |
| Hub Diameter (Decimal Inch) | 0.5300 |
| Stud Length (Decimal Inch) | 0.9800 |
| Stud Material | Steel |
| Color | Black |
| Standards | REACH; RoHS Compliant |
| Body Diameter (Decimal Inch) | 0.7000 |
| Base Diameter (Decimal Inch) | 0.5300 |
| Body Height (Decimal Inch) | 1.1000 |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Plain |
| Components Material | Steel |
| Handle Radius Length (Decimal Inch) | 1.2800 |
| Handle Arm Style | Modern Design |
| UNSPSC Code | 31162801 |
| Actual Handle Height | 1.3100 |
| Threaded Length | 0.9800 |
| Actual Handle Length | 2.5600 |
| Base Radius (Decimal Inch) | 0.2650 |
| Base Width (Inch) | 0.5300 |
| MSC Part # | 60242559 |
| Mfr Part # | THP-3035 |
| Country of Origin Country of Origin is subject to change | Taiwan |
