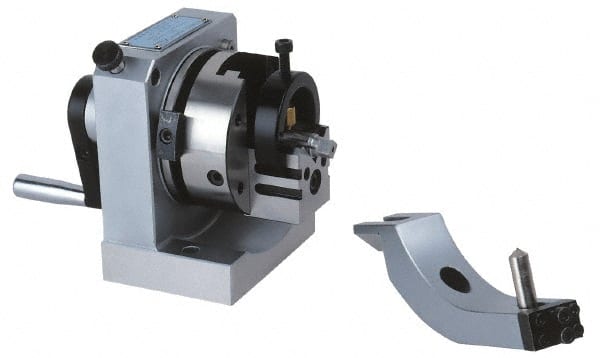

Interstate - 24 Position, Punch Former Indexing Spacer - 3.14" High Centerline, 0.6" Spacer Through Hole, 8.2" OAL, 7.3" Overall Height
Item #: 02220663
Brand: Interstate
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Spacer Type | Punch Former |
| Includes Chuck | No |
| Number of Indexing Increments | 24 |
| Centerline Height (Decimal Inch) | 3.1400 |
| Spacer Through Hole Size (Decimal Inch) | 0.6000 |
| Indexing Accuracy (sec.) | ±5 |
| Squareness - Base to Chuck (Decimal Inch) | 0.0003 |
| Parallelism Over Face (Decimal Inch) | 0.0003 |
| Overall Length (Decimal Inch) | 8.2000 |
| Overall Height (Decimal Inch) | 7.3000 |
