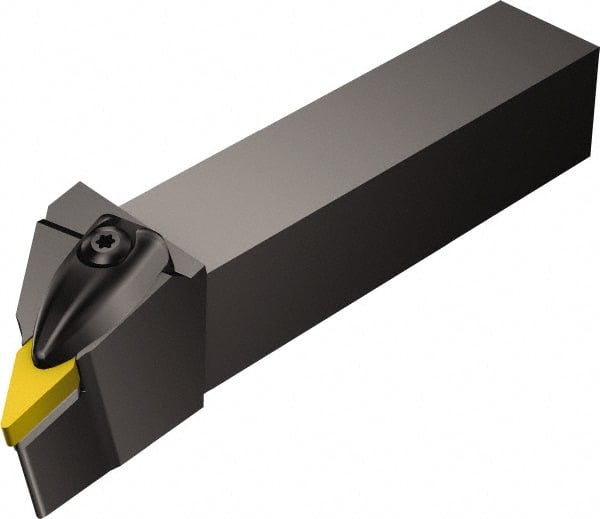

Sandvik Coromant - DVJNR, Right Hand Cut, -3° Lead Angle, 1" Shank Height x 1" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, VNMG 332 Insert Compatibility, Series T-Max P
Item #: 02272276
Brand: Sandvik Coromant
Model #: 5731452
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DVJNR |
| Rake | Negative |
| Rake Angle | -4 |
| Series | T-Max P |
| Lead Angle | -3 |
| Shank Width (Inch) | 1 |
| Shank Width (mm) | 25.40 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | VNMG 332 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Facing |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Inch) | 6 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Length (mm) | 46.48 |
| Head Length (Decimal Inch) | 1.8300 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (Inch) | 3/8 |
| Insert Width (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
