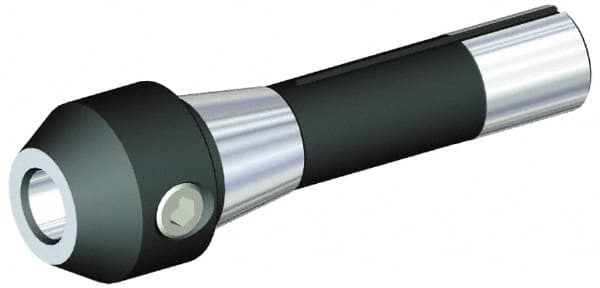

Kennametal - R8 Taper Shank 3/8" Hole End Mill Holder/Adapter - 1" Nose Diam, 1" Projection, 7/16-20 Drawbar, Through-Spindle Coolant
Item #: 02293058
Brand: Kennametal
Model #: 1286049
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | R8 |
| Hole Diameter (Inch) | 3/8 |
| Nose Diameter (Inch) | 1 |
| Projection (Inch) | 1 |
| Projection (Decimal Inch) | 1.0000 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 43.94 |
| Clamping Depth (Decimal Inch) | 1.7300 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Balanced to (RPM) | 8000 |
| Coolant Type | Through-Spindle |
| Drawbar Thread Size | 7/16-20 |
