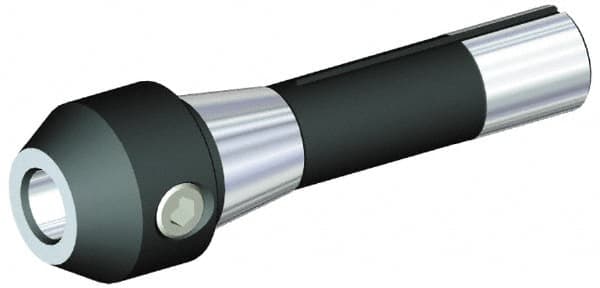

Kennametal - R8 Taper Shank 5/8" Hole End Mill Holder/Adapter - 1-5/8" Nose Diam, 1-1/2" Projection, 7/16-20 Drawbar, Through-Spindle Coolant
Item #: 02293074
Brand: Kennametal
Model #: 1286051
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | R8 |
| Hole Diameter (Inch) | 5/8 |
| Nose Diameter (Inch) | 1-5/8 |
| Projection (Inch) | 1-1/2 |
| Projection (Decimal Inch) | 1.5000 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 53.09 |
| Clamping Depth (Decimal Inch) | 2.0900 |
| Overall Length (Decimal Inch) | 5.5000 |
| Overall Length (mm) | 139.70 |
| Balanced to (RPM) | 8000 |
| Coolant Type | Through-Spindle |
| Drawbar Thread Size | 7/16-20 |
