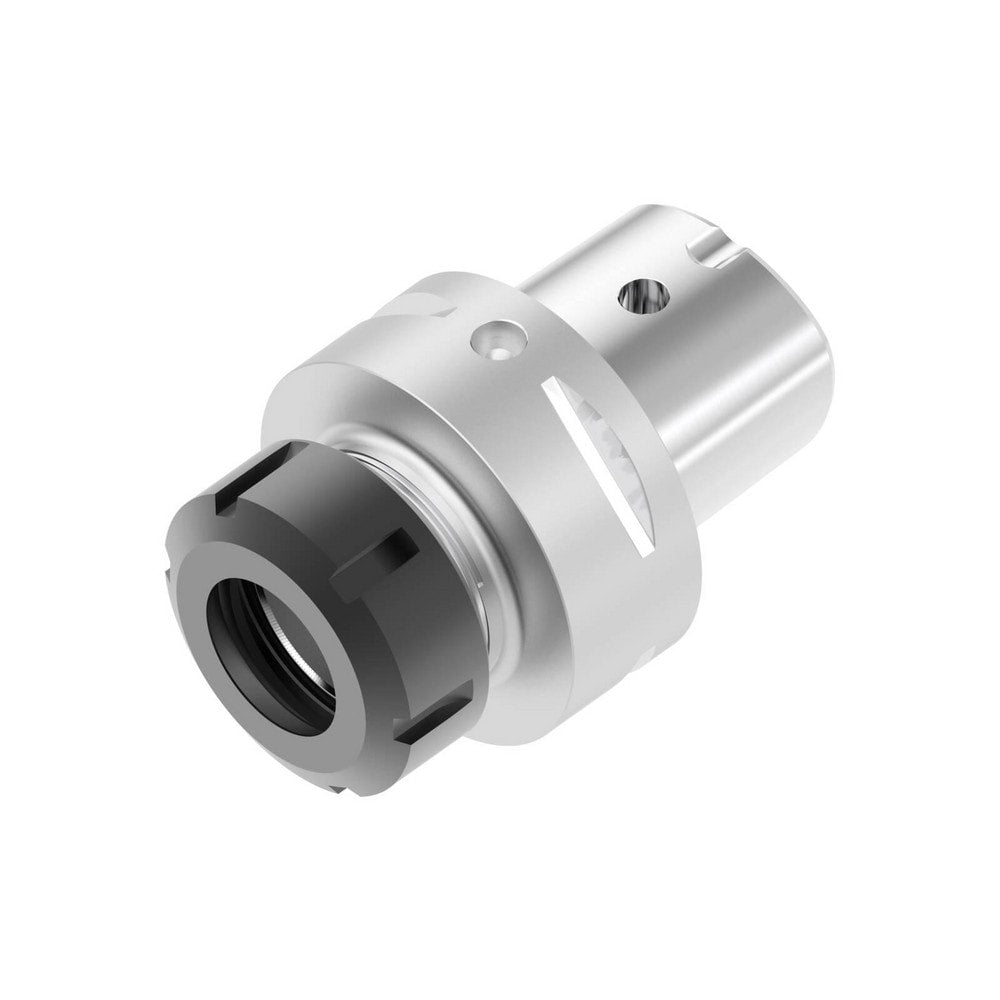

Collet Chuck: ER Collet, Modular Connection Shank, Dual Contact
Item #: 87888046
Brand: Seco
Model #: 10229716
Product Specifications
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Projection (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Overall Length (Decimal Inch) | 5.1181 |
| Actuator Type | Wrench |
| Dual Contact | Yes |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.6535 |
| Shank Diameter (Inch) | 1-31/32 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Shank Length (Decimal Inch) | 1.1811 |
| Material | Steel |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.6535 |
| Nose Type | Plain |
| Type | Collet Chuck |
| Manufacturer's Part Number | C5-ER25-100 |
| UNSPSC Code | 27112808 |
| Head Length (Decimal Inch) | 3.0315 |
| Balanced To Rpm | 20000 |
| Quick Change | No |
| For Use With | ER Collets |
| Country of Origin | France |
