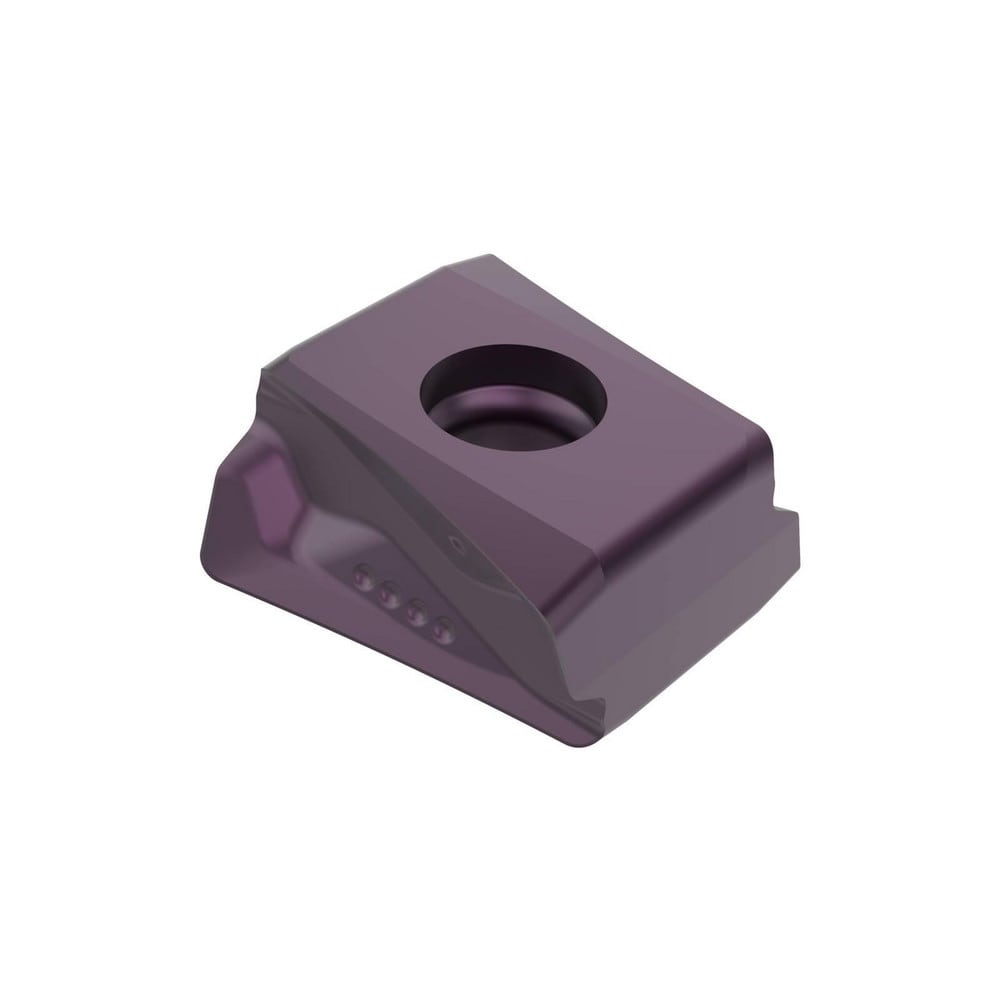

Milling Insert: LOEX120708TR-T4-M12 MP2050, Carbide
Item #: 86275930
Brand: Seco
Model #: 10207754
Product Specifications
| Insert Style | LOEX |
| Insert Size | 12 |
| Insert Material | Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | MP2050 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.4039 |
| Coating/Finish | TiSiN; TiAlN |
| Relief Angle | 0.000 |
| Insert Size Code | 120708 |
| Material Grade | M40; P50; M20; M30; P30; P40 |
| Inscribed Circle (Decimal Inch) | 0.2953 |
| Thickness Range (Decimal Inch) | 0.3500 to 0.5000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Series | LOEX |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4724 |
| Rake | Negative |
| Primary Workpiece Material Code | P; H; M |
| Secondary Workpiece Material | Superalloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | LOEX120708TR-T4-M12 |
| Iso Code | LOEX120708TR-T4-M12 |
| Standards | ISO; ANSI |
| Rake Angle | 35.000 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | 10207754 |
| Cutter Series Compatibility | R217/220.94-12 |
| Chip Breaker | M12 |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2953 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5591 |
| Country of Origin | Sweden |
