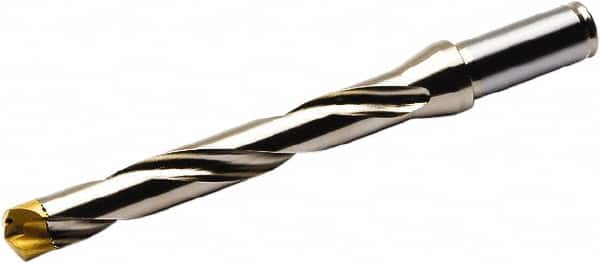

Seco - 19 to 19.99mm Diam, 7xD, 130mm Max Depth, 3/4" Shank Diam, 5.768" Flute, 8.445" OAL, Replaceable Tip Drill - SD107 Toolholder, Series Crownloc
Item #: 02326478
Brand: Seco
Model #: 40011
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Crownloc |
| Minimum Drill Diameter (mm) | 19.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 5.1181 |
| Maximum Drill Depth (mm) | 130.00 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Toolholder Style | SD107 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 5.7680 |
| Body Length (Decimal Inch) | 6.4760 |
| Toolholder Coating | TiAlN |
| Overall Length (Decimal Inch) | 8.4450 |
| Shank Length (Decimal Inch) | 1.9680 |
