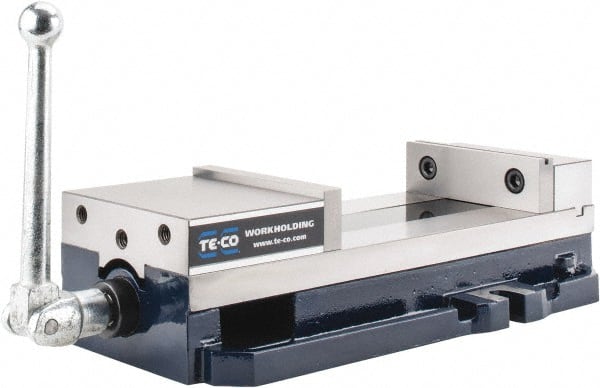

TE-CO - 6" Jaw Width, 9" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Manual Operation, 8,200 Lb Capacity, 1 Station, 437.03mm Long x 117.48mm High x 1-1/2" Deep, 44.45mm Jaw Height
Item #: 02343960
Brand: TE-CO
Model #: PWS-6900
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 6 |
| Jaw Opening Capacity (Inch) | 9 |
| Throat Depth (Inch) | 1-1/2 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Manual |
| Jaw Height (mm) | 44.45 |
| Jaw Height (Decimal Inch) | 1.7500 |
| Base Length (Decimal Inch) | 16.8100 |
| Precision | No |
| Overall Length (mm) | 437.03 |
| Overall Length (Decimal Inch) | 17.2060 |
| Base Width (mm) | 222.80 |
| Base Width (Inch) | 8-3/4 |
| Base Width (Decimal Inch) | 8.7700 |
| Load Capacity (Lb.) | 8200.00 |
| Overall Height (mm) | 117.48 |
| Overall Height (Decimal Inch) | 4.6250 |
| Includes | Alignment Rail |
