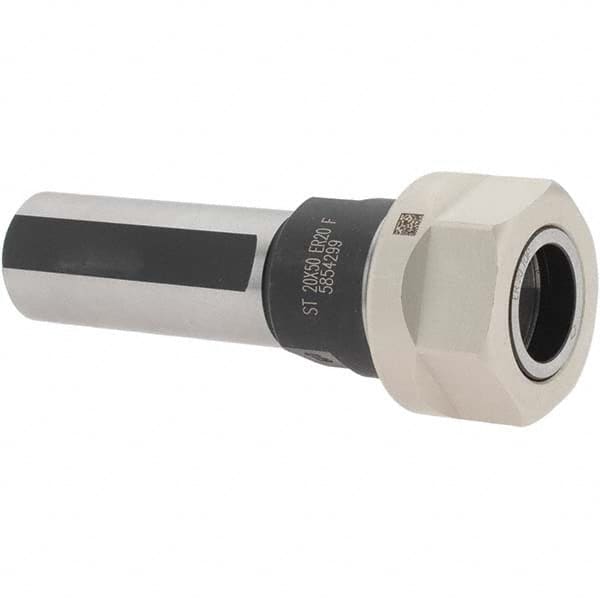

Iscar - 1mm to 13mm Capacity, 42.5mm Projection, Straight Shank, ER20 Collet Chuck - 92.5mm OAL, 20mm Shank Diam
Item #: 02366631
Brand: Iscar
Model #: 4507004
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Projection (mm) | 42.50 |
| Projection (Decimal Inch) | 1.6732 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 13.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.5118 |
| Overall Length (mm) | 92.50 |
| Overall Length (Decimal Inch) | 3.6417 |
| Actuator Type | Wrench |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Nose Diameter (mm) | 34.00 |
| Nose Diameter (Decimal Inch) | 1.3386 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| TIR (mm) | 0.0050 |
| Coolant Type | Through-Spindle |
