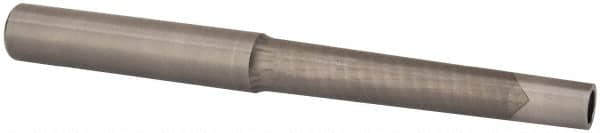

Iscar - Multimaster 1" 89° Shank Milling Tip Insert Holder & Shank - 0.72" Neck Diam, T12 Neck Thread, 1" OAL, Carbide MM S-D Tool Holder
Item #: 02394955
Brand: Iscar
Model #: 3103851
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 89 Degree Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Neck Diameter (Decimal Inch) | 0.7200 |
| Neck Thread Size | T12 |
| Toolholder Material | Carbide |
| Overall Length (Decimal Inch) | 10.0000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Effective Length (Decimal Inch) | 5.5000 |
| Milling Tip Style | E93CN-MM, HCE-MM, HCM-MM, HM90 E90A-MM-10, HP E90AN-MM-07, MM EB, MM EC-4, MM ERS, MM HBR, MM HCD |
| Shank Shape | Straight |
| Toolholder Style | MM S-D |
