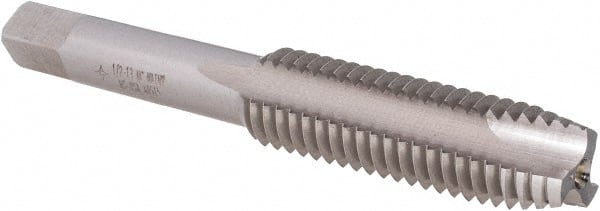

Cle-Line - 1/2-13 UNC, 3 Flute, Bright Finish, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 3-3/8" OAL, 1-21/32" Thread Length, 9.32mm Shank Diam, Series 0411
Item #: 02528099
Brand: Cle-Line
Model #: C62164
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/2-13 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Finish/Coating | Bright |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.3750 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (mm) | 85.73 |
| Oversize | No |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.6563 |
| Thread Length (Inch) | 1-21/32 |
| Thread Length (mm) | 42.07 |
| Series/List | 0411 |
| Style | Spiral Point |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Shank Diameter (mm) | 9.32 |
| Square Size (Decimal Inch) | 0.2750 |
| Square Size (mm) | 6.99 |
