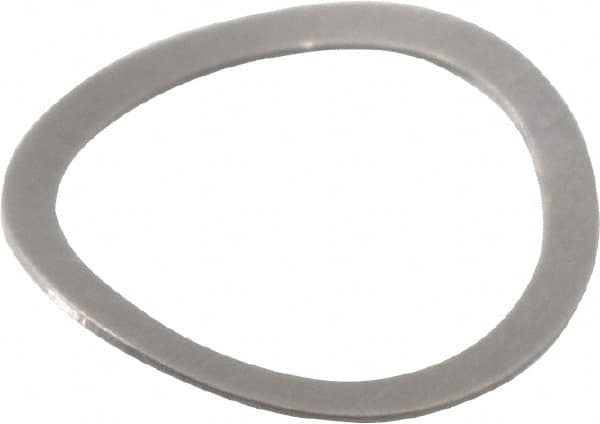

Gardner Spring - 0.194" ID x 0.242" OD, Grade 302 Stainless Steel Wave Disc Spring - 0.006" Thick, 0.03" Overall Height, 0.015" Deflection, 0.75 Lb at Deflection
Item #: 02566529
Brand: Gardner Spring
Model #: MW0242-006-S
Exact Tooling IR#: 04
Features and Benefits
Wave disc springs deliver a consistent spring rate where space is limited.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Wave Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.194 |
| Outside Diameter (Decimal Inch) | 0.242 |
| Material | Stainless Steel |
| Material Grade | 302 |
| Overall Height (Decimal Inch) | 0.030 |
| Thickness (Decimal Inch) | 0.006 |
| Deflection (Decimal Inch) | 0.0150 |
| Load at Deflection (Lb.) | 0.75 |
| Load at Flat (Lb.) | 0.97 |
