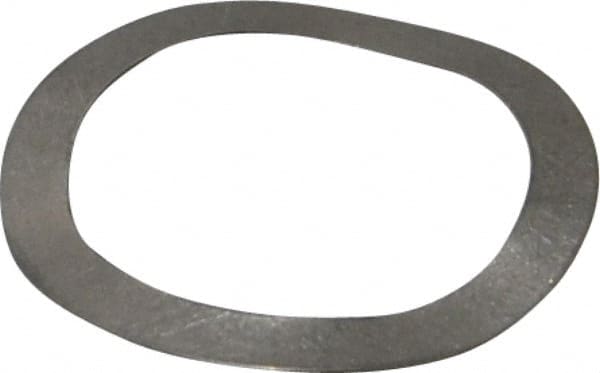

Gardner Spring - 0.65" ID x 0.855" OD, Grade 302 Stainless Steel Wave Disc Spring - 0.01" Thick, 0.06" Overall Height, 0.03" Deflection, 5.5 Lb at Deflection
Item #: 02566669
Brand: Gardner Spring
Model #: MW0855-010-S
Exact Tooling IR#: 04
Features and Benefits
Wave disc springs deliver a consistent spring rate where space is limited.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Wave Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.650 |
| Outside Diameter (Decimal Inch) | 0.855 |
| Material | Stainless Steel |
| Material Grade | 302 |
| Overall Height (Decimal Inch) | 0.060 |
| Thickness (Decimal Inch) | 0.010 |
| Deflection (Decimal Inch) | 0.0300 |
| Load at Deflection (Lb.) | 5.50 |
| Load at Flat (Lb.) | 5.98 |
