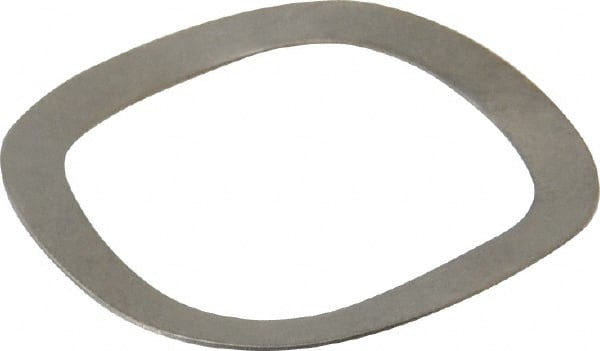

Gardner Spring - 1.051" ID x 1.351" OD, Grade 302 Stainless Steel Wave Disc Spring - 0.015" Thick, 0.099" Overall Height, 0.0336" Deflection
Item #: 02566750
Brand: Gardner Spring
Model #: MW1351-015-S
Exact Tooling IR#: 04
Features and Benefits
Wave disc springs deliver a consistent spring rate where space is limited.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Wave Disc Spring |
| Inside Diameter (Decimal Inch) | 1.051 |
| Outside Diameter (Decimal Inch) | 1.351 |
| Material | Stainless Steel |
| Material Grade | 302 |
| Overall Height (Decimal Inch) | 0.099 |
| Thickness (Decimal Inch) | 0.015 |
| Deflection (Decimal Inch) | 0.0336 |
| Load at Flat (Lb.) | 11.95 |
