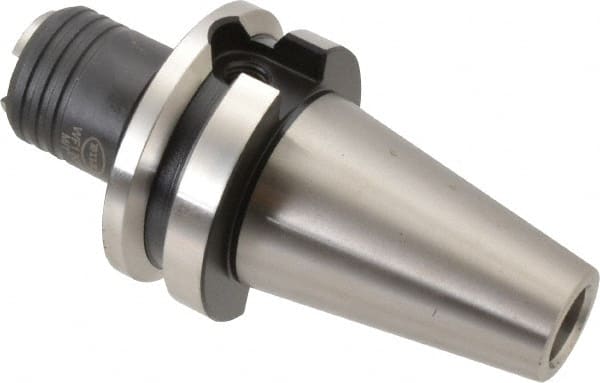

Bilz - BT40 Taper Shank Tapping Chuck/Holder - M3 to M12 Tap Capacity, 99mm Projection, Size 1 Adapter, Quick Change, Through Coolant
Item #: 02604049
Brand: Bilz
Model #: 117014
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Minimum Tap Capacity (mm) | M3 |
| Maximum Tap Capacity (mm) | M12 |
| Projection (Decimal Inch) | 2.4000 |
| Projection (mm) | 99.00 |
| Quick Change | Yes |
| Minimum Collet Capacity (Inch) | #0 |
| Maximum Collet Capacity (Inch) | 9/16 |
| Hole Diameter (mm) | 19.00 |
| Adapter Size | 1 |
| Nose Diameter (mm) | 32.00 |
| Nose Diameter (Decimal Inch) | 1.2598 |
| Through Coolant | Yes |
