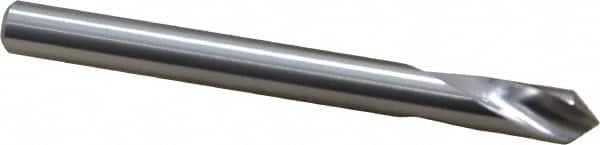

90° 0.2362″ Diam 2-5/8″ OAL Cobalt Spotting Drill Bright/Uncoated, 0.8″ Flute Length, 0.2362″ Shank Diam, RH Cut, Series 195
Item #: 02617371
Brand: Magafor
Model #: 81195060000
Product Specifications
| Drill Point Angle | 90 |
| Cutting Diameter (mm) | 6.00 |
| Cutting Diameter (Decimal Inch) | 0.2362 |
| Overall Length (Inch) | 2-5/8 |
| Tool Material | Cobalt M-35 (HSS-E) |
| Coating/Finish | Bright/Uncoated |
| Single/Double Ended | Single |
| Series | 195 |
| Overall Length (Decimal Inch) | 2.6250 |
| Flute Length (Decimal Inch) | 0.8000 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thinning | Web Thinned |
| Web Thickness | 0.0230 |
