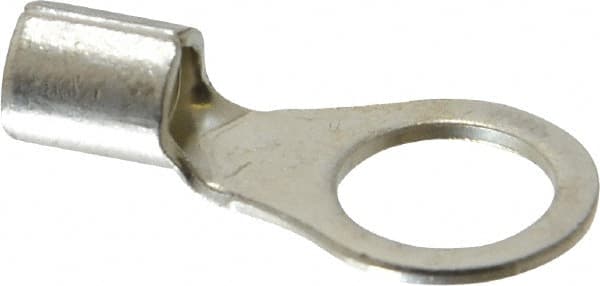

Ideal - 8 AWG Noninsulated Crimp Connection Circular Ring Terminal - 3/8" Stud, 1.161" OAL x 0.591" Wide, Tin Plated Brass Contact
Item #: 02651321
Brand: Ideal
Model #: 83-0451
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Circular |
| Insulation Type | NonInsulated |
| Connection Type | Crimp |
| Compatible Wire Size (AWG) | 8 |
| Compatible Wire Size (sq mm) | 8.00 |
| Stud Size (mm) | 9.53 |
| Stud Size (Inch) | 3/8 |
| Contact Material | Brass |
| Ring Width (Decimal Inch) | 0.5910 |
| Overall Length (Decimal Inch) | 1.1610 |
| Contact Plating | Tin |
| Standards Met | cUL Listed; RoHS Compliant; UL Listed |
