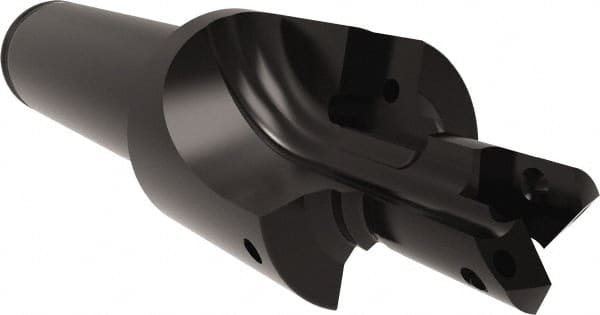

Allied Machine and Engineering - AND10050, MS 33649, SAE AS5202 Standard, 1/2-20" Thread, 5 Tube Dash Number, 60° Porting Angle, 0.517" Pilot Diam, 5/8" Shank Diam, Indexable Spade Blade Insert Porting Tool - 2 Porting Inserts, 3.512" Overall Length
Item #: 02666881
Brand: Allied Machine and Engineering
Model #: AS5202-05Z-063F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Port Standard Designation | AND10050; MS 33649; SAE AS5202 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 1/2-20 |
| Tube Dash Number | 5 |
| Pilot Diameter (Decimal Inch) | 0.5170 |
| Spotface Diameter (Decimal Inch) | 0.9160 |
| Pilot Length (Decimal Inch) | 0.0830 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Porting Inserts | 2 |
| Porting Insert Style | AS5202-05-C5A |
| Porting Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 3.5120 |
| Through Coolant | NonThrough Coolant |
| Porting Angle | 60 |
| Head Length (Decimal Inch) | 1.6370 |
| Shank Length (Decimal Inch) | 1.8750 |
| Spotface to Shoulder Length (Decimal Inch) | 0.8820 |
| Pre-Drill Size (Decimal Inch) | 0.4530 |
| Series | AccuPort 432 |
