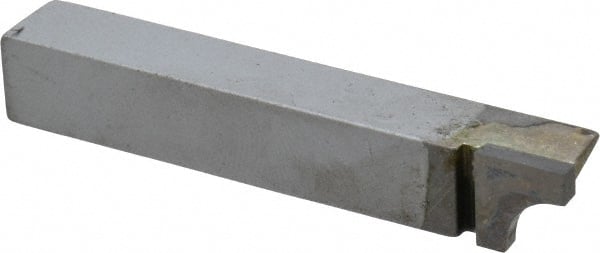

Accupro - 2-1/2 Inch Long, 7/32 Inch Radius, Left Hand, Concave, RAL Style Radius Cutting Tool Bit - 3/8 Inch Long Tip, 3/32 Inch Thick, 3/8 Inch Shank Square, Carbide Tip
Item #: 02701563
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
RAL indicates that the tool cuts a concave radius in a right handed direction.
Concave radius tool bits are used to produce convex half circles on the surface of the workpiece.
| Product Specifications | |
|---|---|
| Tip Material | Carbide |
| Tool Bit Style | RAL |
| Convex or Concave Bit | Concave |
| Radius (Inch) | 7/32 |
| Shank Square Size (Inch) | 3/8 |
| Overall Length (Inch) | 2-1/2 |
| Cutting Direction | Left Hand |
| Tip Thickness (Inch) | 3/32 |
| Tip Length (Inch) | 3/8 |
