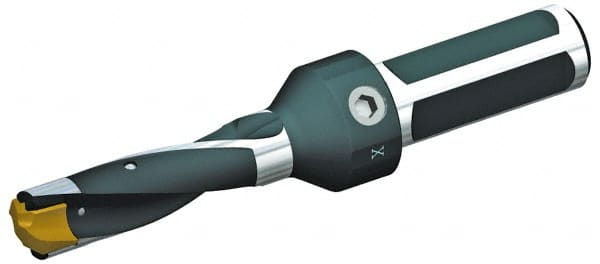

Kennametal - 25 to 25.5mm Diam, 3xD, 78mm Max Depth, 1" Shank Diam, 109.47mm Flute, 206.38mm OAL, Replaceable Tip Drill - KSEM0984 Insert, 5 Seat Size, Series KSEM
Item #: 02734747
Brand: Kennametal
Model #: 1505120
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 25.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (mm) | 25.50 |
| Maximum Drill Diameter (Decimal Inch) | 1.0039 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.0700 |
| Maximum Drill Depth (mm) | 78.00 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | KSEM0984 |
| Insert Seat Size | 5 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.1500 |
| Flute Length (mm) | 109.47 |
| Flute Length (Decimal Inch) | 4.3098 |
| Overall Length (mm) | 206.38 |
| Overall Length (Decimal Inch) | 8.1252 |
| Shank Length (Decimal Inch) | 3.0000 |
