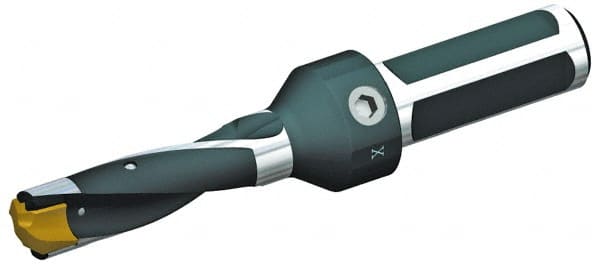

Kennametal - 17.07 to 17.57mm Diam, 3xD, 52.07mm Max Depth, 3/4" Shank Diam, 70.36mm Flute, 142.88mm OAL, Replaceable Tip Drill - KSEM0672 Insert, 1 Seat Size, Series KSEM
Item #: 02734838
Brand: Kennametal
Model #: 1613628
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 17.07 |
| Minimum Drill Diameter (Decimal Inch) | 0.6720 |
| Maximum Drill Diameter (mm) | 17.57 |
| Maximum Drill Diameter (Decimal Inch) | 0.6917 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.0500 |
| Maximum Drill Depth (mm) | 52.07 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0672 |
| Insert Seat Size | 1 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.1100 |
| Flute Length (mm) | 70.36 |
| Flute Length (Decimal Inch) | 2.7701 |
| Overall Length (mm) | 142.88 |
| Overall Length (Decimal Inch) | 5.6252 |
| Shank Length (Decimal Inch) | 2.0000 |
