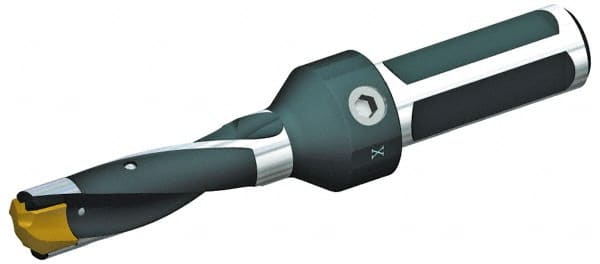

Kennametal - 18.64 to 19.14mm Diam, 3xD, 59.94mm Max Depth, 3/4" Shank Diam, 89.15mm Flute, 158.75mm OAL, Replaceable Tip Drill - KSEM0734 Insert, 2 Seat Size, Series KSEM
Item #: 02734853
Brand: Kennametal
Model #: 1613633
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 18.64 |
| Minimum Drill Diameter (Decimal Inch) | 0.7339 |
| Maximum Drill Diameter (mm) | 19.14 |
| Maximum Drill Diameter (Decimal Inch) | 0.7535 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.3600 |
| Maximum Drill Depth (mm) | 59.94 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0734 |
| Insert Seat Size | 2 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.1200 |
| Flute Length (mm) | 89.15 |
| Flute Length (Decimal Inch) | 3.5098 |
| Overall Length (mm) | 158.75 |
| Overall Length (Decimal Inch) | 6.2500 |
| Shank Length (Decimal Inch) | 2.0000 |
