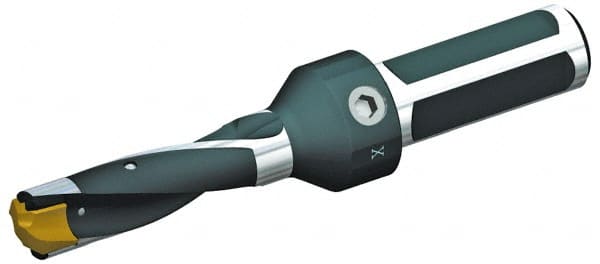

Kennametal - 21.82 to 22mm Diam, 3xD, 66.04mm Max Depth, 1" Shank Diam, 95.25mm Flute, 193.68mm OAL, Replaceable Tip Drill - KSEM0859 Insert, 3 Seat Size, Series KSEM
Item #: 02734903
Brand: Kennametal
Model #: 1613638
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 21.82 |
| Minimum Drill Diameter (Decimal Inch) | 0.8591 |
| Maximum Drill Diameter (mm) | 22.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.8661 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.6000 |
| Maximum Drill Depth (mm) | 66.04 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | KSEM0859 |
| Insert Seat Size | 3 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.1400 |
| Flute Length (mm) | 95.25 |
| Flute Length (Decimal Inch) | 3.7500 |
| Overall Length (mm) | 193.68 |
| Overall Length (Decimal Inch) | 7.6252 |
| Shank Length (Decimal Inch) | 3.0000 |
