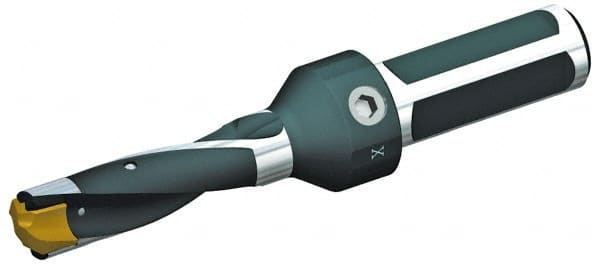

Kennametal - 26.19 to 26.7mm Diam, 3xD, 84.07mm Max Depth, 1-1/4" Shank Diam, 117.09mm Flute, 222.25mm OAL, Replaceable Tip Drill - KSEM1031 Insert, 6 Seat Size, Series KSEM
Item #: 02734960
Brand: Kennametal
Model #: 1613654
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 26.19 |
| Minimum Drill Diameter (Decimal Inch) | 1.0311 |
| Maximum Drill Diameter (mm) | 26.70 |
| Maximum Drill Diameter (Decimal Inch) | 1.0512 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.3100 |
| Maximum Drill Depth (mm) | 84.07 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | KSEM1031 |
| Insert Seat Size | 6 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.1600 |
| Flute Length (mm) | 117.09 |
| Flute Length (Decimal Inch) | 4.6098 |
| Overall Length (mm) | 222.25 |
| Overall Length (Decimal Inch) | 8.7500 |
| Shank Length (Decimal Inch) | 3.2500 |
