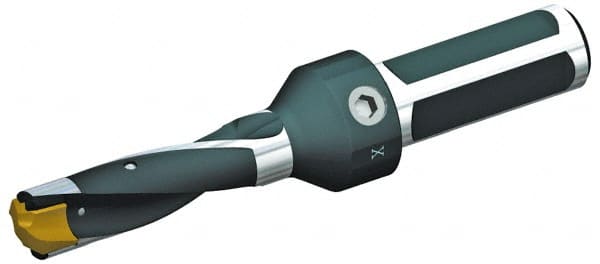

Kennametal - 32.94 to 33.94mm Diam, 3xD, 99.06mm Max Depth, 1-1/2" Shank Diam, 154.94mm Flute, 273.05mm OAL, Replaceable Tip Drill - KSEM1297 Insert, 9 Seat Size, Series KSEM
Item #: 02735033
Brand: Kennametal
Model #: 1616099
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 32.94 |
| Minimum Drill Diameter (Decimal Inch) | 1.2969 |
| Maximum Drill Diameter (mm) | 33.94 |
| Maximum Drill Diameter (Decimal Inch) | 1.3362 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.9000 |
| Maximum Drill Depth (mm) | 99.06 |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Style | KSEM1297 |
| Insert Seat Size | 9 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.2000 |
| Flute Length (mm) | 154.94 |
| Flute Length (Decimal Inch) | 6.1000 |
| Overall Length (mm) | 273.05 |
| Overall Length (Decimal Inch) | 10.7500 |
| Shank Length (Decimal Inch) | 3.7500 |
